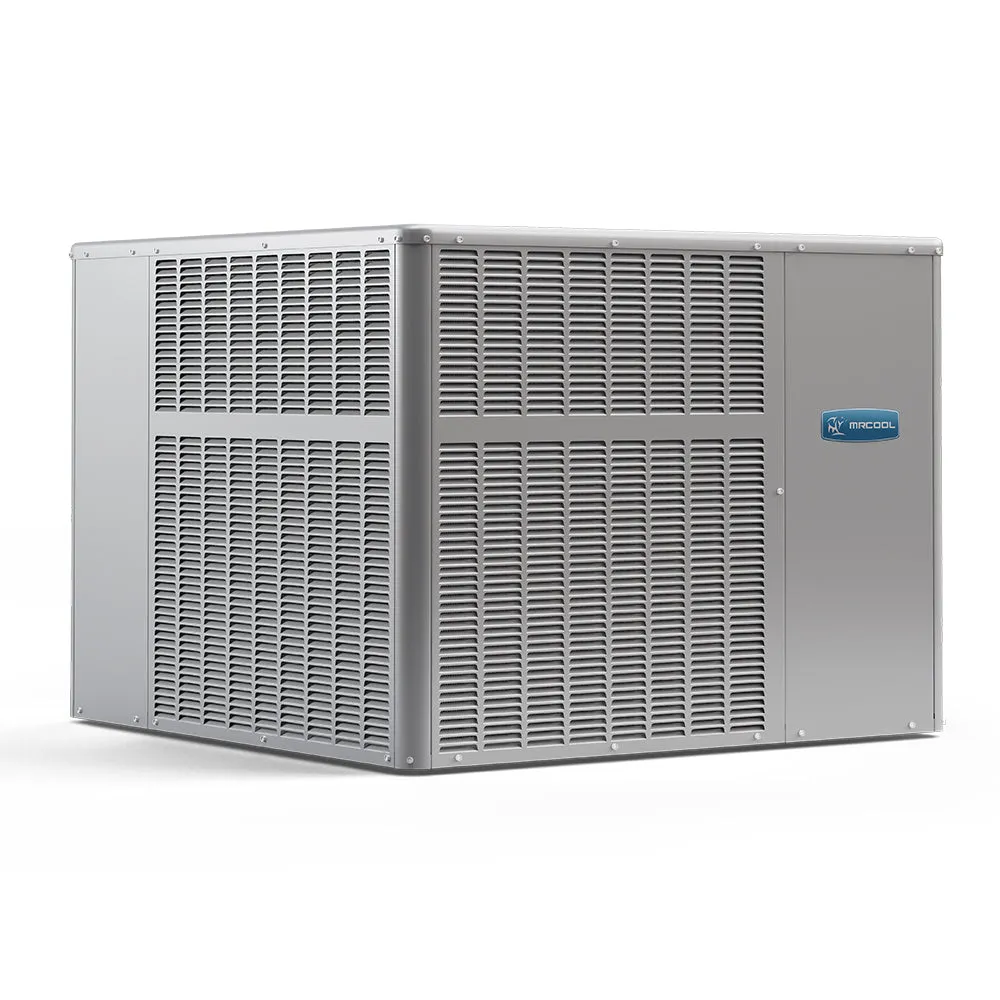

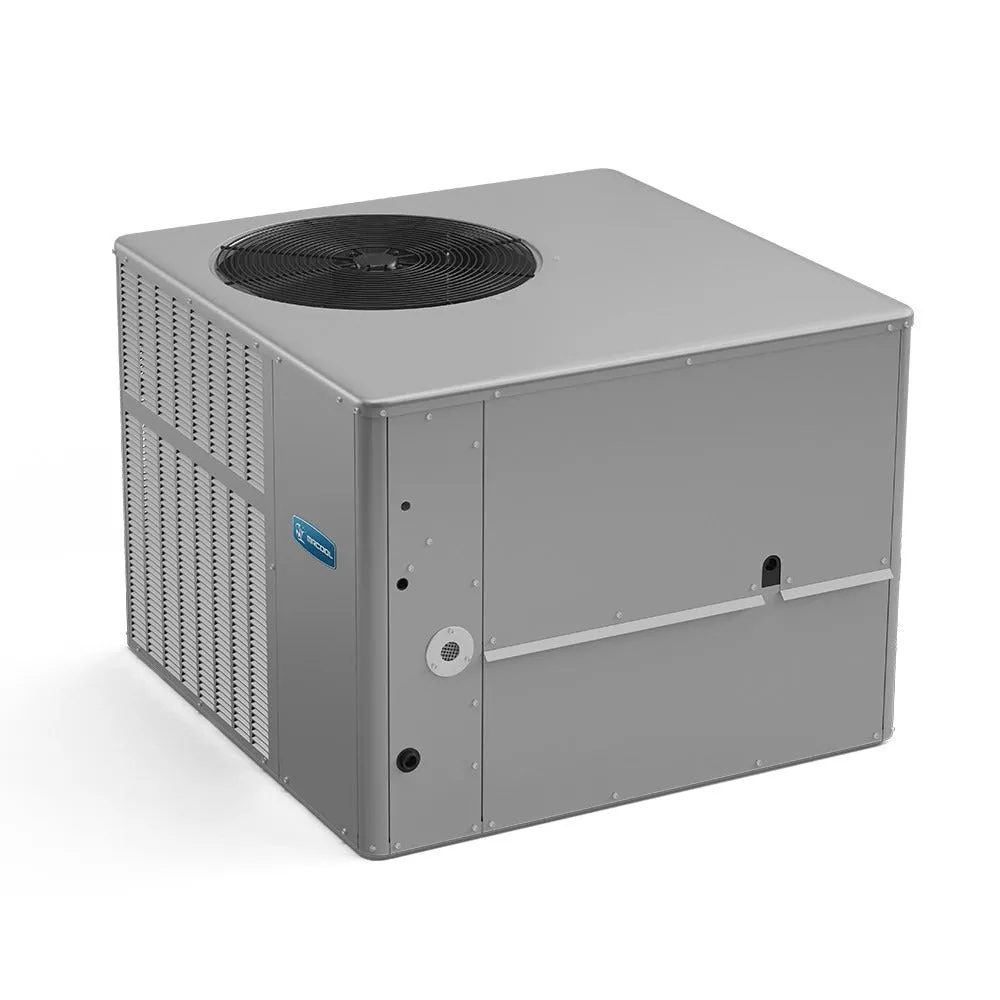

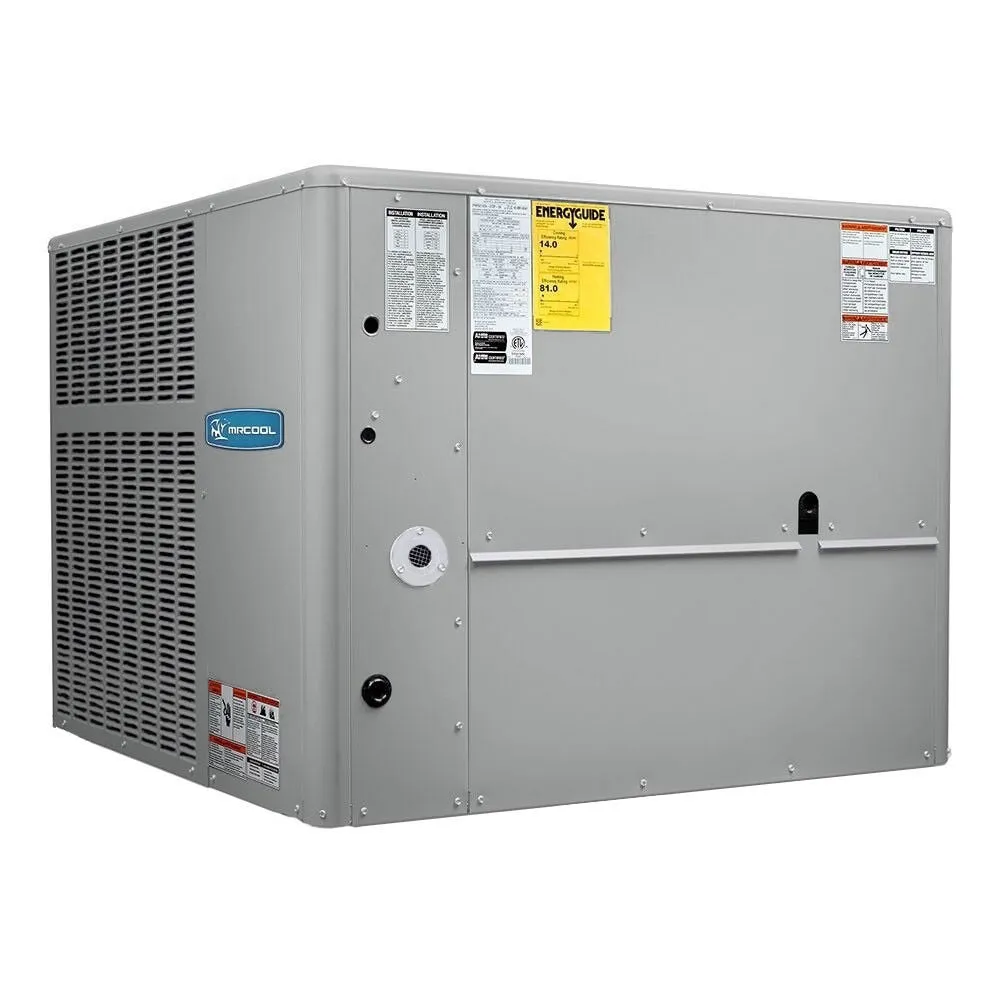

MRCOOL® Signature Series 42K BTU 3.5 Ton 14 SEER Louvered Air Conditioner Package Unit - Multiposition
This is a brand new MRCOOL® Signature Series 42,000 BTU 3.5 Ton 14 SEER Air Conditioner Package Unit. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).
Features:
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R-410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
Specifications
| BRAND | MRCOOL® |
| MODEL | MPC421M414A |
| SERIES | Signature Packaged Air Conditioner |
| GTIN | 00810512032679 |
| UPC | 810512032679 |
| UNIT TYPE |
Package AC |
| SEER | 14 |
| SEER2 | 13.4 |
| EER | 11 |
| EER2 | 10.6 |
| CFM | 1400 |
| TONNAGE | 3.5 |
| COOLING CAPACITY (BTU) |
40000 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) |
40 |
| MIN CIRCUIT AMPACITY (A) |
27.5 |
| COLOR | Gray |
| COLOR FAMILY |
Gray |
| RATED LOAD |
15.9 |
| MAX COVERAGE AREA |
1750 |
| REFRIGERANT TYPE |
R-410A |
| REFRIGERANT VOLUME (OZ) |
108 |
| DECIBEL RATING (DBA) |
78 |
| MIN AMBIENT HEAT (F) |
0 |
| COMPRESSOR MOTOR TYPE |
Single Stage |
| CONDENSER FAN MOTOR TYPE |
ECM |
| CONDENSER FAN MOTOR HP |
1/4 |
| BLOWER MOTOR TYPE |
ECM |
| BLOWER MOTOR HP |
3/4 |
| BLOWER MOTOR SPEEDS |
Multi-speed |
| BLOWER MOTOR RPM |
475-1540 |
| FILTER TYPE |
Replaceable |
| FILTER SIZE |
20x20 |
| METERING DEVICE |
TXV |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| AUXILIARY HEATER SIZES |
5kw, 7.5kw, 10kw, 15kw |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
No |
| LEED CERTIFIED |
No |
| ASHRAE COMPLIANT |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
10-Year Parts Limited Warranty |
| BASE WARRANTY |
5 year base limited parts warranty |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
| NET DEPTH (IN) |
47.66 |
| NET HEIGHT (IN) |
44.89 |
| NET WIDTH (IN) |
56.13 |
| NET WEIGHT (LBS) |
405.00 |
| GROSS DEPTH (IN) |
48.00 |
| GROSS HEIGHT (IN) |
46.00 |
| GROSS WIDTH (IN) |
57.50 |
| GROSS WEIGHT (LBS) |
460 |
| FREIGHT CLASS |
125 |
